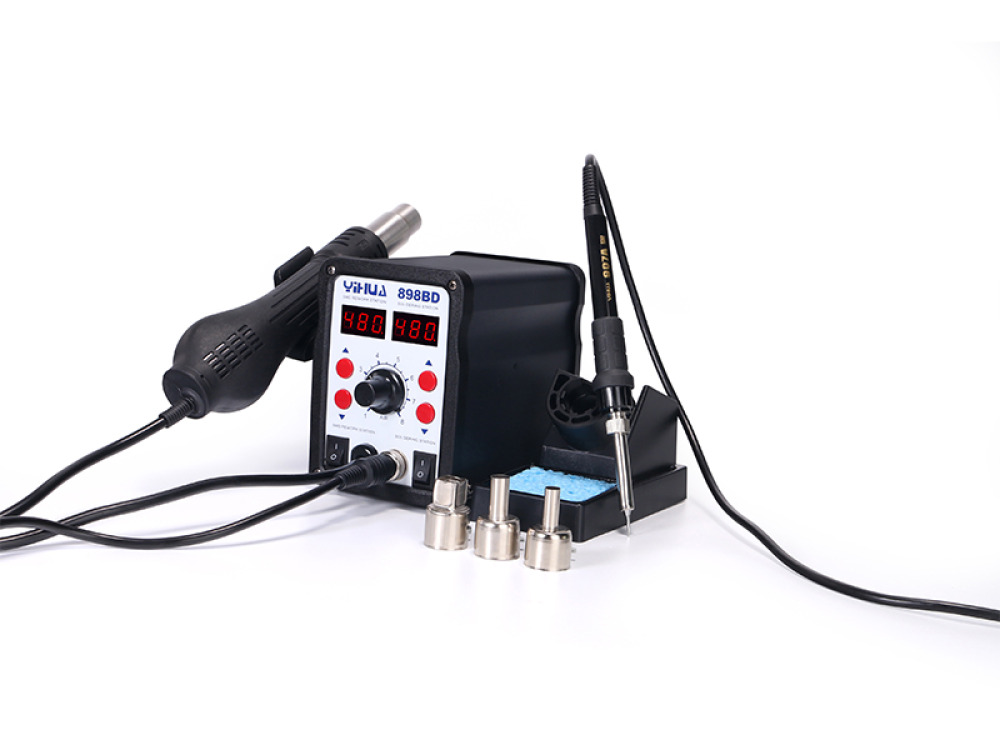

Yihua Hot-Air Rework Station

2-in-1 Hot Air Rework Station with an LED display. This compact in size rework station combines a hot air gun with a soldering iron which makes it perfect for maintenance and production works. The device is equipped with a precise temperature control, a PID regulator

controlled by a microprocessor as well as closed-loop sensors. The high-power hot air gun has a high air flow, and it heats up rapidly. Thanks to these features, it can be used for lead-free soldering. The low-voltage heating element of the soldering station is ideal for working with

sensitive components. Additionally, the 2-in-1 Hot Air Rework Station has an automatic alarm function and an effective fault detection system.

Product specifications:

Rated voltage: AC: 220V +/- 10% 50Hz,

Output power: 750W +/- 10% (max.),

Working environment: 0-40°C,

Relative humidity <80%,

Storing temperature: -20-80°C.

Hot air gun:

Rated voltage: AC: 220V +/- 10% 50Hz,

Output power: 700W +/- 10%,

Temperature range: 100 ~ 480°C,

Gas flow rate: 120L/min (max.),

Temp. stability: +/- 2°C (static).

Soldering iron:

Rated voltage: AC: 26V +/- 10% 50Hz,

Output power: 40W +/- 10%,

Temperature range: 200 ~ 480°C,

Temp. stability: +/- 2°C (static),

Tip to ground resistance: <2 ohm,

Tip to ground potential: <2mV.
